Standpipe PAC

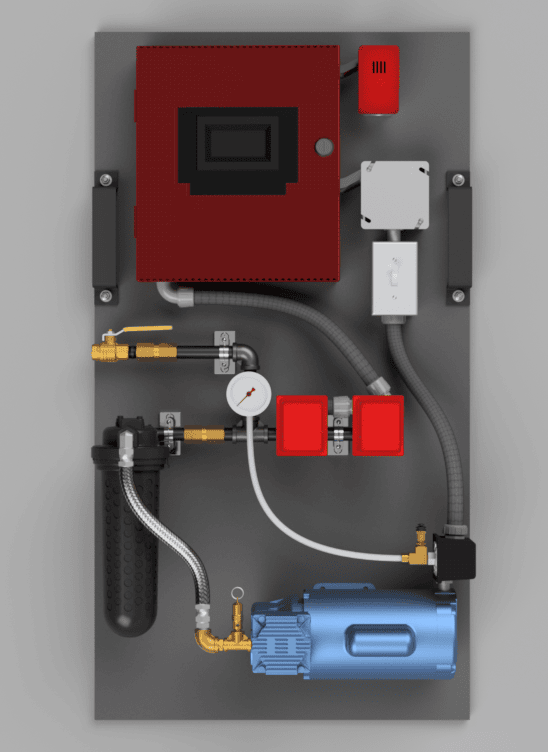

The UNITED Fire Systems STANDPIPE-PAC is a fully assembled standpipe supervisory system, including compressor, switches, alarm, and control unit providing one complete zone of standpipe supervision. The STANDPIPE-PAC is in compliance with New York City’s Local Law 64 and the Boston Fire Department’s TCM3-51725. All components are mounted on a sturdy wooden backboard, suitable for hanging at a construction or demolition site.

To learn more, give us a call at 908.688.0300 or contact us online to learn more.

STANDPIPE-PAC Features & Connections

The connection from the system to the standpipe is conveniently located on the front of the unit. The 120 VAC power connection is made in a pre-mounted junction box. This one connection provides power for both the compressor and the control panel.

The STANDPIPE-PAC also includes:

  • Air compressor
  • Automatic compressor cut-in and cut-out
  • Pressure switch operating on pressure drop
  • Pressure switch operating over 25 PSIG
  • Local audible alarm
  • Active, dedicated power supply
  • Check valve to prevent water from entering the compressor
  • Air dryer
  • Lockable shutoff valve
  • Manual air release vale (to be field installed)
  • Silenceable audible(s)
  • Provision for a remote audible device (supervised)
  • Power backup batteries
  • Local gauge to monitor air pressure
  • Compressor power disconnect switch
  • Fully factory assembled and tested
  • No field assembly required
  • Connects to 120VAC and to the standpipe
  • Easy-to-follow instructions on enclosure front
  • Complete instructions for installation and testing
  • Digital communicator standard with monitoring options available

Contact UNITED Fire Systems Today

Give us a call at 908.688.0300 or contact us online to request more information about the STANDPIPE-PAC system.


STANDPIPE-PAC (NYC)

The UNITED Fire Systems STANDPIPE-PAC is a fully assembled standpipe supervisory system, including compressor, switches, alarm, and control unit providing one complete zone of standpipe supervision. The STANDPIPE-PAC is in compliance with New York City’s Local Law 64 and the Boston Fire Department’s TCM3-51725. All components are mounted on a sturdy wooden backboard, suitable for hanging at a construction or demolition site.

Product Information

STANDPIPE-PAC (Boston)

The UNITED Fire Systems STANDPIPE-PAC is a fully assembled standpipe supervisory system, including compressor, switches, alarm, and control unit providing one complete zone of standpipe supervision. The STANDPIPE-PAC is in compliance with New York City’s Local Law 64 and the Boston Fire Department’s TCM3-51725. All components are mounted on a sturdy wooden backboard, suitable for hanging at a construction or demolition site.

Product Information

Did You Know?
  • The design, installation, and maintenance of preaction sprinkler systems are governed by multiple national standards and codes. For example, the detection portion of the systems comes under NFPA 72 – National Fire Alarm Code. The design of the mechanical portion is covered by NFPA 13 – Standard for the Installation of Sprinkler Systems. The standard for ongoing inspection and maintenance of the system is NFPA 25 – Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. Keep it simple – choose PREACTION-PAC and you will receive one instruction manual containing all that you need.
